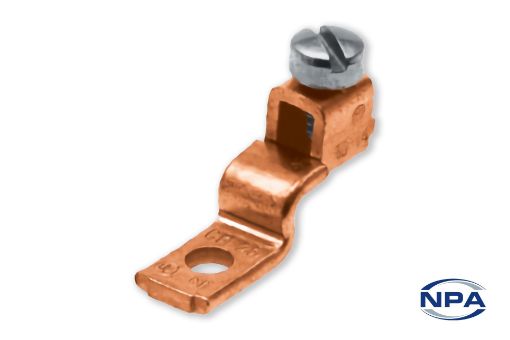

Picture of Lug Connector Single Hole Offset

Lug Connector Single Hole Offset

Product Code: 1851
Manufacturer: Heyco
UOM: EACH
Made from seamless, pure electrolytic copper. 100% conductivity for highest efficiency. Completely reusable. Requires no special installation tools. UL listed and CSA certified for use with copper conductors. Marked with catalog description and conductor range.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionLug Connector
TypeSingle Hole Offset
MaterialElectrolytic Copper and 6061-T6 Aluminium Alloy
Length35.1mm
Width9.7mm
Height19.1mm
Current Rating50A
Cable Size AWG14 - 6
Flammability Rating94V-0
CertificationsUL, CSA
Other informationBolt Size 4.8mm
