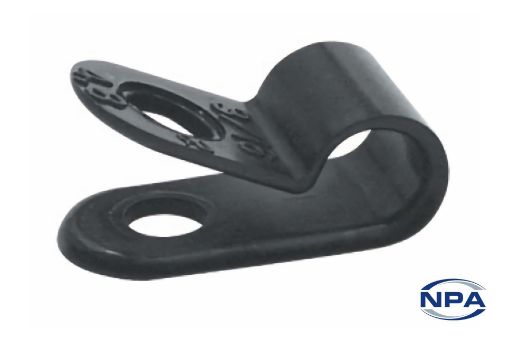

"P" Clip Standard Black

Product Code: 3352

Manufacturer: Heyco

UOM: EACH

3.2mm diameter "P" clip cable clamps secure, insulate and route cable, wiring , tubing, piping and fibre optics. Fasten with an Imperial size 10 screw.

Download Datasheet

Products specifications

Description	"P" Clip
Type	Standard
Colour	Black
Material	Nylon 66
Width	9.5mm
Mounting Hole Diameter	5.2mm
Thickness	1.3mm
Screw Size	10mm
Cable Size mm	3.2mm
Minimum Temperature	0°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL
