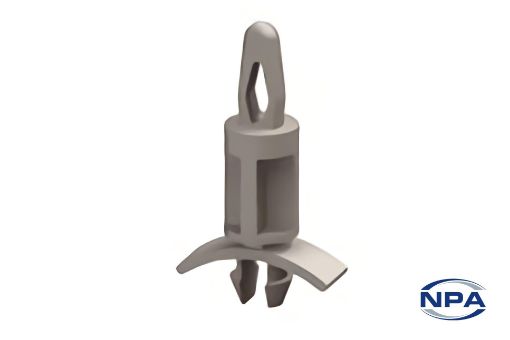

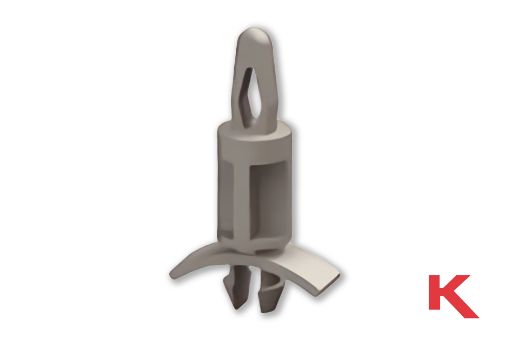

Picture of PCB Support Sturdy Tension-Fit Natural

PCB Support Sturdy Tension-Fit Natural

Product Code: K8800
Manufacturer: Keystone
UOM: EACH
4.7mm tall PCB supports with a snap-in mount on the bottom and a tension fit bayonet on the top.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionPCB Support
TypeSturdy Tension-Fit
ColourNatural
MaterialNylon 66
Diameter7.1mm
Spacing4.7mm
PCB Thickness1.57mm
PCB Hole Diameter4mm
Chassis Thickness1.57mm
Chassis Hole Diameter4.8mm
Flammability Rating94V-0
CertificationsUL
