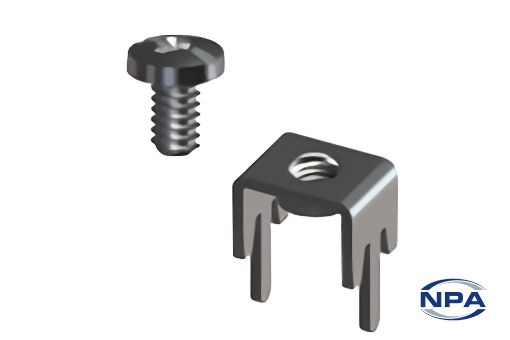

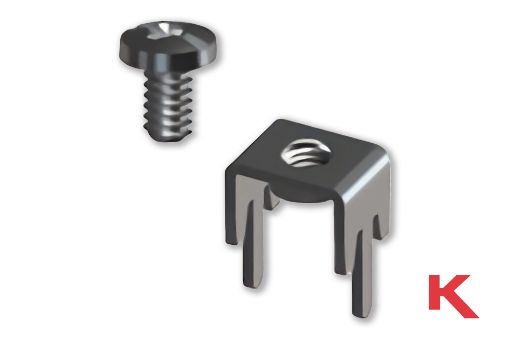

Picture of Screw Terminal Low Profile

Screw Terminal Low Profile

Product Code: K8198
Manufacturer: Keystone
UOM: EACH
Snap-in vertical screw terminals rated for 15 Amps. The screw is supplied unassembled.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeLow Profile
MaterialTin Plated Brass Terminal With Nickel Plated Brass Screw
Length8.7mm
Width6.3mm
Height6.4mm
ProfileVertical
Thread Length6.3mm
Thread Pitch6-32
Current Rating15A
Other informationScrew Supplied Unassembled
