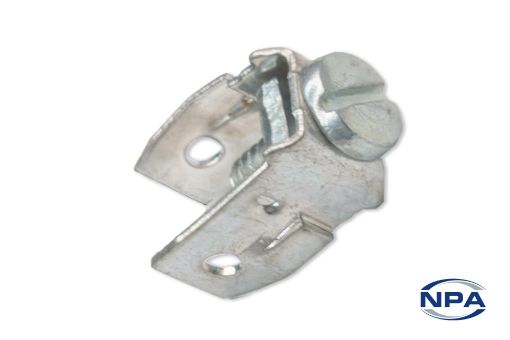

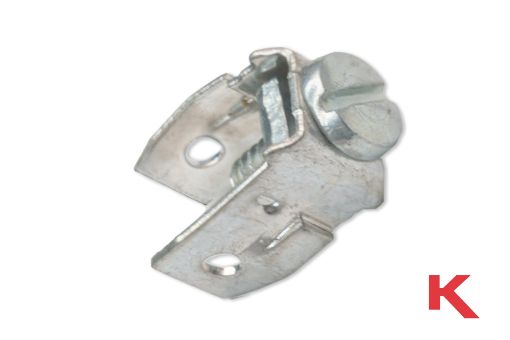

Picture of Screw Terminal Snap-In

Screw Terminal Snap-In

Product Code: K1272
Manufacturer: Keystone
UOM: EACH
Snap-in thru-hole mounted screw terminals. The 6-32 screw is supplied installed and captivated. Includes a tab for soldering onto. Rated for 15 Amps.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeSnap-In
MaterialTin Plated Steel Terminal With Zinc Plated Steel Screw
Width9.5mm
Thread Length9.5mm
Thread Pitch6-32
Current Rating15A
Tab Size7.8mm
Other informationScrew Installed & Captivated
