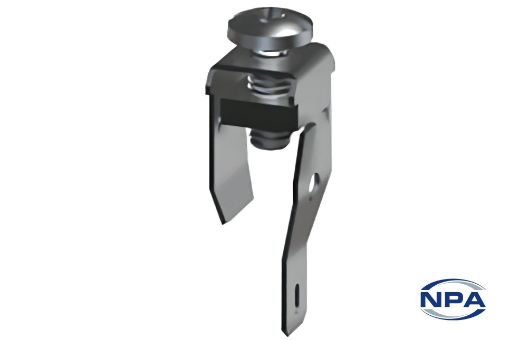

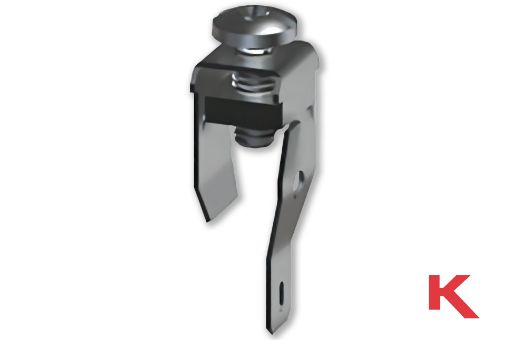

Picture of Screw Terminal Solder Mount

Screw Terminal Solder Mount

Product Code: K1273
Manufacturer: Keystone
UOM: EACH
Snap-in thrue-hole mounted screw terminals with a quick-fit tab. The 6-32 screw is supplied installed and captivated. Rated for 15 Amps.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeSolder Mount
MaterialTin Plated Steel Terminal With Zinc Plated Steel Screw
Width7.8mm
Thread Length9.5mm
Thread Pitch6-32
Current Rating15A
Tab Size4.7mm
Other informationScrew Installed & Captivated
