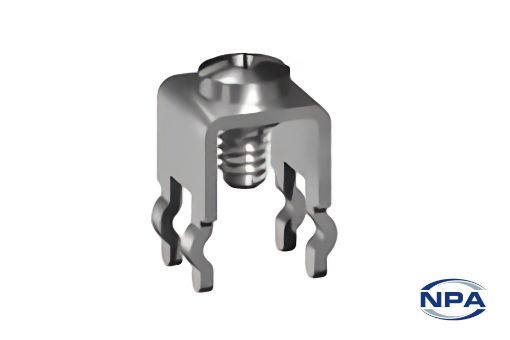

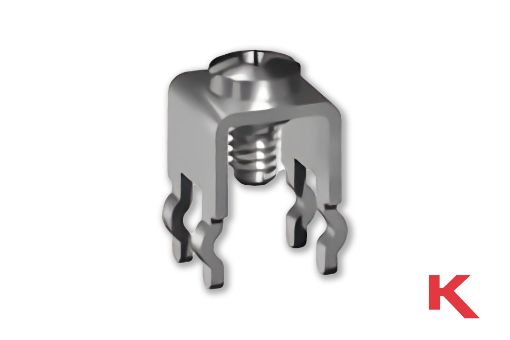

Picture of Screw Terminal Thru-Hole Mount

Screw Terminal Thru-Hole Mount

Product Code: K7696
Manufacturer: Keystone
UOM: EACH
Snap-in vertical screw terminals rated for 15 Amps. Screw is supplied installed and captivated
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeThru-Hole Mount
MaterialTin Plated Brass Terminal With Nickel Plated Brass Screw
Length8mm
Width8mm
Height6.45mm
ProfileVertical
Thread Length6mm
Thread PitchM3
Current Rating15A
Other informationScrew Installed & Captivated
