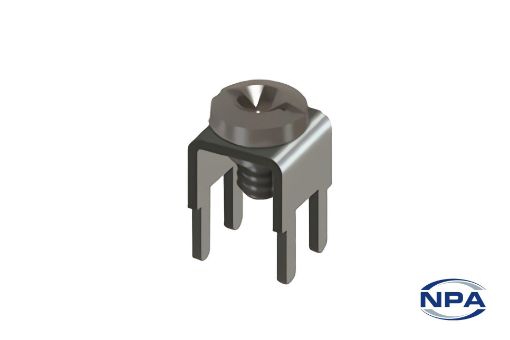

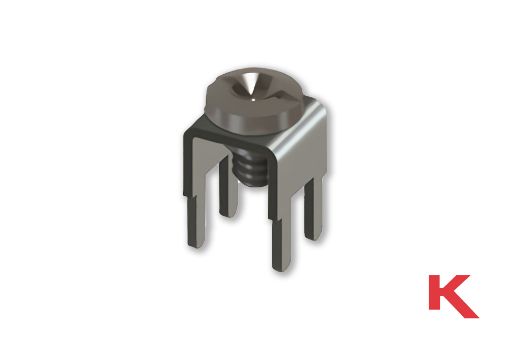

Picture of Screw Terminal Thru-Hole Mount

Screw Terminal Thru-Hole Mount

Product Code: K7701
Manufacturer: Keystone
UOM: EACH
Snap-in vertical screw terminals rated for 15 Amps. Screw is supplied installed and captivated
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeThru-Hole Mount
MaterialTin Plated Brass Terminal With Nickel Plated Brass Screw
Length7.9mm
Width7.9mm
Height5.4mm
ProfileVertical
Thread Length6.3mm
Thread Pitch6-32
Current Rating15A
Other informationScrew Installed & Captivated
