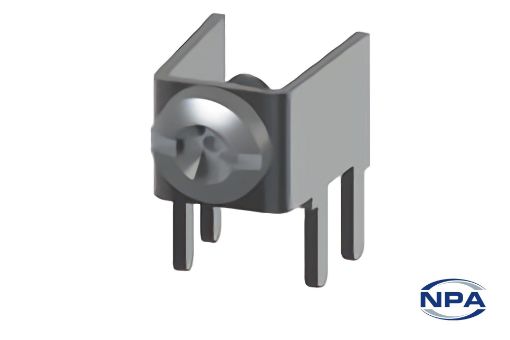

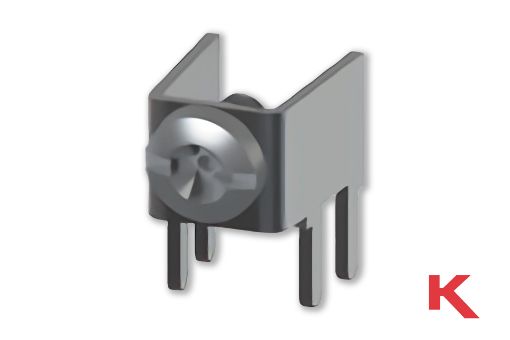

Picture of Screw Terminal Thru-Hole Mount

Screw Terminal Thru-Hole Mount

Product Code: K7766
Manufacturer: Keystone
UOM: EACH
Snap-in horizontal screw terminals rated for 15 Amps. Screw is supplied installed and captivated.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeThru-Hole Mount
MaterialTin Plated Brass Terminal With Nickel Plated Brass Screw
Length11.5mm
Height7.11mm
ProfileHorizontal
Thread Length6mm
Thread PitchM4
Current Rating15A
Other informationScrew Installed & Captivated
