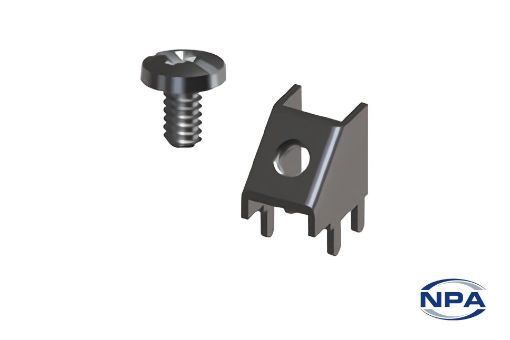

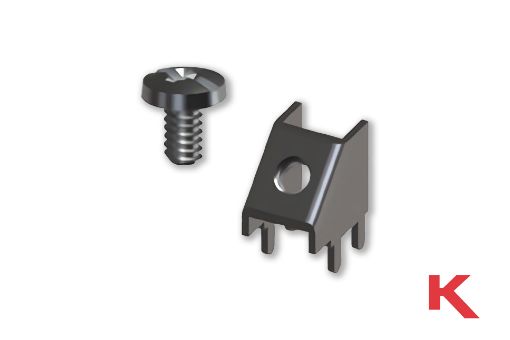

Picture of Screw Terminal Thru-Hole Mount

Screw Terminal Thru-Hole Mount

Product Code: K8189
Manufacturer: Keystone
UOM: EACH
Thru-hole mounted screw terminals set at a 45º angle. Rated for 15 Amps. The screw is supplied unassembled.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionScrew Terminal
TypeThru-Hole Mount
MaterialTin Plated Brass Terminal With Nickel Plated Brass Screw
Length11.5mm
Width7.5mm
Height10.5mm
Profile45 Degree Angled
Thread Length6.3mm
Thread Pitch6-32
Current Rating15A
Other informationScrew Supplied Unassembled
