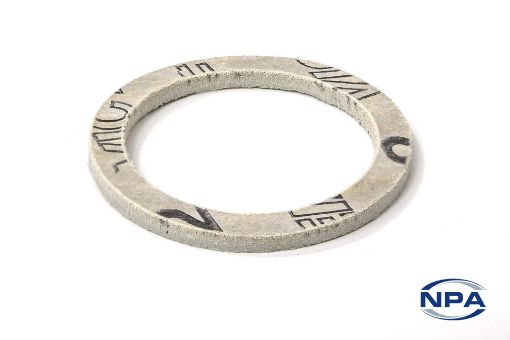

Sealing Ring Flat Grey

Product Code: PE07-35JP1-M25
Manufacturer: Delaunay
UOM: EACH
Flat fibre sealing rings for rail cable glands. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Weigh under 3.5g Flammability rating: EN 45545-3:E25 (820°C). General temperature range: -55°C to 200°C.
Products specifications
DescriptionSealing Ring
TypeFlat
ColourGrey
MaterialFibre
Diameter33.7mm
Internal Hole Diameter25.08mm
Thread PitchM25
IP RatingIP 6X, IPX6, IPX8
Minimum Temperature-50°C
Maximum Temperature200°C
Flammability RatingEN 45545-3: E25
