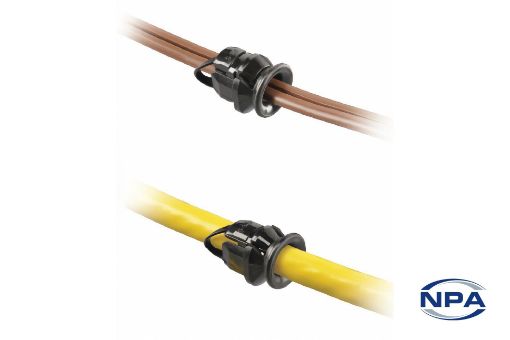

Strain Relief Bushing Bell Mouth - For Round Cables Black

Product Code: 1220
Manufacturer: Heyco
UOM: EACH
Round cable strain relief bushings with a Bell Mouth - For an even smoother fit. Fits SJ, SJO & SJT cables measuring AWG 16/2 (8.2mm), 18/3 (8.4mm), 14/2 (8.9mm), 16/3 (9mm) and 18/4 (9.1mm).
Products specifications
DescriptionStrain Relief Bushing
TypeBell Mouth - For Round Cables
ColourBlack
MaterialNylon 66
Length20.7mm
Mounting Hole Diameter15.9mm
Panel Thickness3.2mm
Cable Size AWG18 - 14
Cable Size Minimum8.1mm
Cable Size Maximum9.1mm
Flammability Rating94V-2
