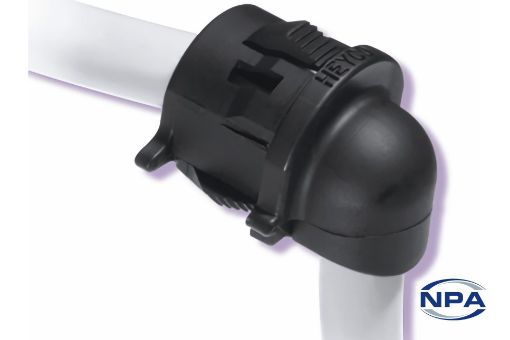

Strain Relief Bushing Lock-It Right-Angled Black

Product Code: 1820
Manufacturer: Heyco
UOM: EACH
Lock-it strain relief bushings that easily snap onto round cables and maintain a 90º angle without damaging the cable. Consult the datasheet's table for a list of compatible cable sizes.
Products specifications
DescriptionStrain Relief Bushing
TypeLock-It Right-Angled
ColourBlack
MaterialNylon 66
Mounting Hole Diameter22.2mm
Panel Thickness0.8 - 4mm
Cable Size Minimum7.4mm
Cable Size Maximum9.8mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationRound Cable
