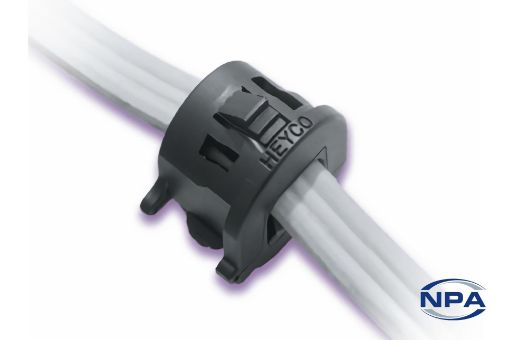

Picture of Strain Relief Bushing Lock-It Straight-Thru For Flat Cables Black

Strain Relief Bushing Lock-It Straight-Thru For Flat Cables Black

Product Code: 1874
Manufacturer: Heyco
UOM: EACH
Lock-it strain relief bushings for securing flat cables through Heyco Double D holes. Fit SPT-2 HPN cables measuring AWG 18/2 (2.9mm x 8mm), 18/3 (2.9mm x 8mm) or 16/3 (4.1mm x 7.6mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeLock-It Straight-Thru For Flat Cables
ColourBlack
MaterialNylon 66
Mounting Hole Diameter15.9mm
Panel Thickness0.8 - 2.5mm
Cable Size AWG18 - 16
Cable Size Minimum2.9 x 8mm
Cable Size Maximum4.1 x 7.6mm
Flammability Rating94V-2
CertificationsUL, CSA
Other informationFlat Cable
