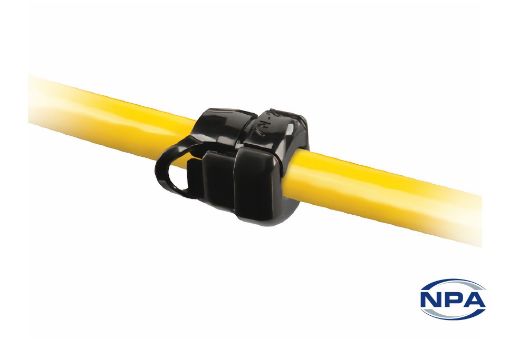

Strain Relief Bushing Lock-it - Straight-Thru - Rectangular Black

Product Code: 1852
Manufacturer: Heyco
UOM: EACH
Lock-it strain relief bushings easily fasten onto round cables. Compatible with Heyco Double D holes. For a list of compatible cables refer to the datasheet.
Products specifications
DescriptionStrain Relief Bushing
TypeLock-it - Straight-Thru - Rectangular
ColourBlack
MaterialNylon 66
Mounting Hole Diameter15.9mm
Panel Thickness0.8 - 2.5mm
Cable Size Minimum5.6mm
Cable Size Maximum7.4mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationRound Cable
