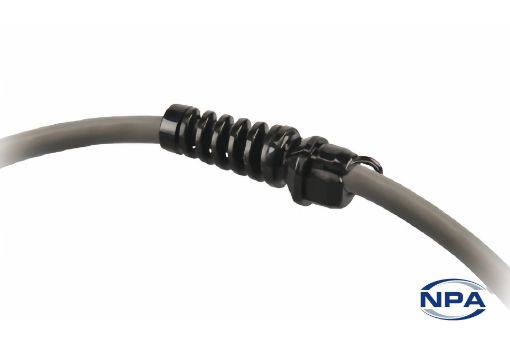

Strain Relief Bushing Pigtail - For Round Cables Black

Product Code: 1599
Manufacturer: Heyco
UOM: EACH
Strain relief bushings designed to prevent sharp bends in round cables. Fit SJ, SJO & SJT cables measuring AWG 16/2 (8mm), 18/3 (8.1mm), 14/2 (8.9mm), 16/3 (9mm) or 18/4 (9.1mm) in diameter.
Products specifications
DescriptionStrain Relief Bushing
TypePigtail - For Round Cables
ColourBlack
MaterialNylon 66
Length53.6mm
Mounting Hole Diameter15.9mm
Panel Thickness1.6mm
Cable Size AWG18 - 14
Cable Size Minimum8mm
Cable Size Maximum9.1mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationRound Cable
