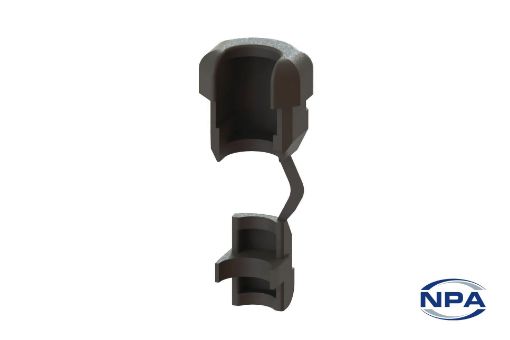

Picture of Strain Relief Bushing Straight-Thru Black

Strain Relief Bushing Straight-Thru Black

Product Code: 23MP05KN4
Manufacturer: Microplastics
UOM: EACH
Strain relief bushings for flat cables. Fits SPT-2 cables measuring AWG 18/3 (3.8mm x 10.1mm) and 16/2 (4.1mm x 7.6mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru
ColourBlack
MaterialHeat Stabilised Nylon
Length15.5mm
Width15.9mm
Mounting Hole Diameter14.3mm
Panel Thickness1.6mm
ProfileFlat
Cable Size AWG18/3, 16/2
Cable Size Minimum3.8mm x 10.1mm
Cable Size Maximum4.1mm x 7.6mm
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
