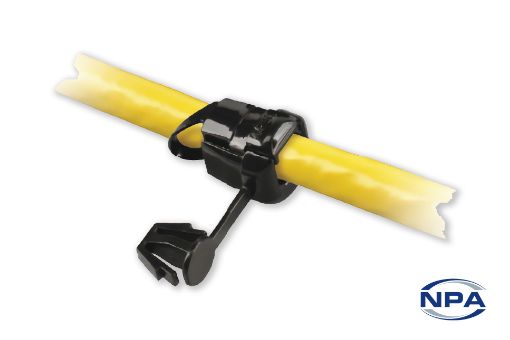

Picture of Strain Relief Bushing Straight-Thru - For European Round Cables Black

Strain Relief Bushing Straight-Thru - For European Round Cables Black

Product Code: 3776
Manufacturer: Heyco
UOM: EACH
Strain relief bushings for European cables. Feature an arrowhead mount for installations where the bushing must be secured before attaching to the cable. Fits 8.3mm - 9.1mm cables.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For European Round Cables
ColourBlack
MaterialNylon 66
Length15.9mm
Mounting Hole Diameter15.9mm
Panel Thickness3.2mm
Cable Size Minimum8.3mm
Cable Size Maximum9.1mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
