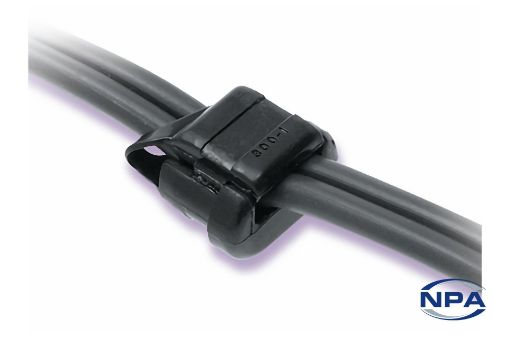

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1017
Manufacturer: Heyco
UOM: EACH
Bushings to anchor flat cables through holes while absorbing push, pull and other strains. Fit CLOCK X & XT cables AWG 20/2 (2.3mm x 4.6mm) & SPT-1 Cables measuring AWG 18/2 (2.8mm x 5.3mm). To plug an unneeded hole afterwards refer to product 2617.
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length10.3mm
Mounting Hole Diameter9.5mm
Panel Thickness1.6mm
Cable Size AWG20 - 18
Cable Size Minimum2.3 x 4.6mm
Cable Size Maximum2.8 - 5.3mm
Flammability Rating94V-2
Other informationFlat Cable
