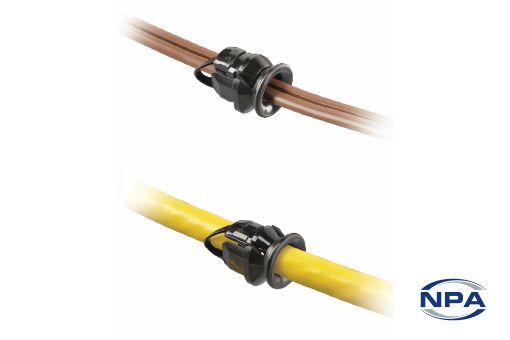

Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1020
Manufacturer: Heyco
UOM: EACH
Bushings to anchor flat cables through holes. Fit CLOCK X & XT cables measuring AWG 20/2 (2.3mm x 4.6mm) & SPT-2 cables measuring AWG 18/2 (2.6 x 5.3mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length15.9mm
Mounting Hole Diameter9.5mm
Panel Thickness1.6mm
Cable Size AWG20 - 18
Cable Size Minimum2.3 x 4.6mm
Cable Size Maximum2.8 - 5.3mm
Flammability Rating94V-2
Other informationBell Mouth
