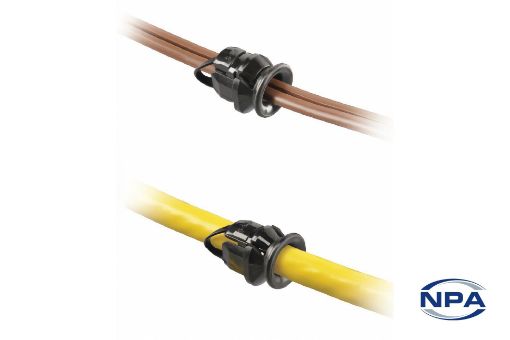

Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1108
Manufacturer: Heyco
UOM: EACH
Bushings to anchor flat cables through holes. Fit SPT-1 cables measuring AWG 18/3 (3 x 7.6mm), SPT-2 & HPN cables measuring 18/2 (3.8mm x 7.1mm) and 16/2 (4.1mm x 7.6mm). To plug an unneeded hole after refer to product 2491.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length17.9mm
Mounting Hole Diameter12.7mm - 13.1mm
Panel Thickness1.6mm
Cable Size AWG18 - 16
Cable Size Minimum3.8mm x 7.1
Cable Size Maximum4.1mm x 7.6mm
Flammability Rating94V-2
