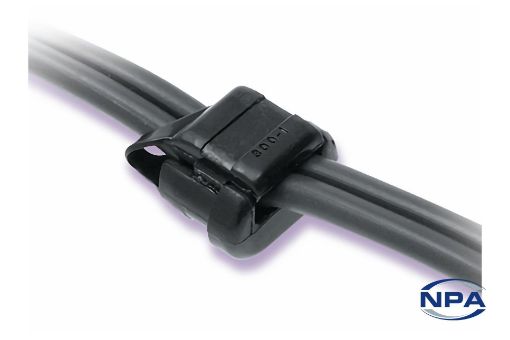

Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1127
Manufacturer: Heyco
UOM: EACH
Bushings to relieve strain on flat cables. Fit SPT-1 cables measuring AWG 18/3 (3mm x 7.6mm), as well as SPT-2 and HPN cables measuring AWG 18/2 (3.8mm x 7.1mm). To plug an unneeded hole after use refer to product 2491.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length10.3mm
Mounting Hole Diameter12.7mm
Panel Thickness4mm
Cable Size AWG18
Cable Size Minimum3 x 7.6mm
Cable Size Maximum3.8 x 7.1mm
Flammability Rating94V-2
Other informationFlat Cable
