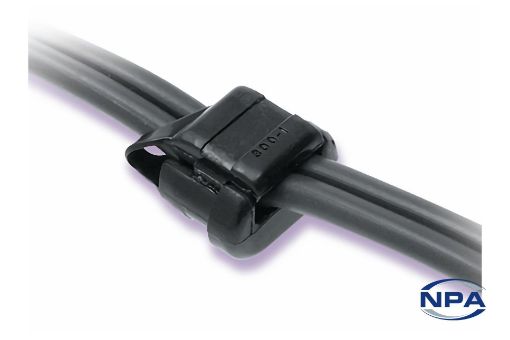

Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1167
Manufacturer: Heyco
UOM: EACH
Strain relief bushings reduce the impact on flat cables. Fits SPT-3 cables measuring AWG 18/2 (4.8mm x 8.9mm) or 16/2 (5.1mm x 9.4mm), SPT-2 cables AWG 18/3 (3.8mm x 10.2mm) or SPT & HPN cables measuring AWG 16/3 (4.1mm x 10.4mm). To fill unneeded holes refer to product 2494.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length15.5mm
Mounting Hole Diameter14.3mm
Panel Thickness3.2mm
Cable Size mm4.1 x 10.4mm
Cable Size AWG16
Flammability Rating94V-2
