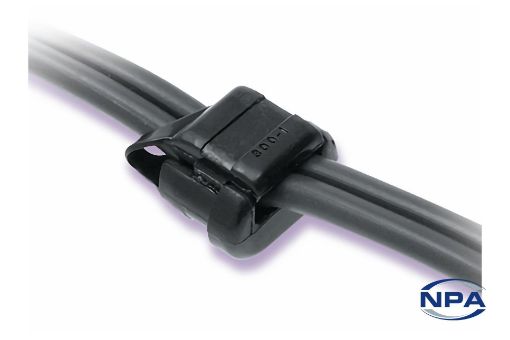

Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1181
Manufacturer: Heyco
UOM: EACH
Strain relief bushings for flat cables. Fit SPT-1 cables measuring AWG 18/3 (3mm x 7.6mm), SPT-2 & HPN cables measuring AWG 18/2 (3.8mm x 7.1mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourBlack
MaterialNylon 66
Length13.9mm
Mounting Hole Diameter12.7mm
Panel Thickness1mm
Cable Size AWG18
Cable Size Minimum3 x 7.6mm
Cable Size Maximum3.8 x 7.1mm
Flammability Rating94V-2
