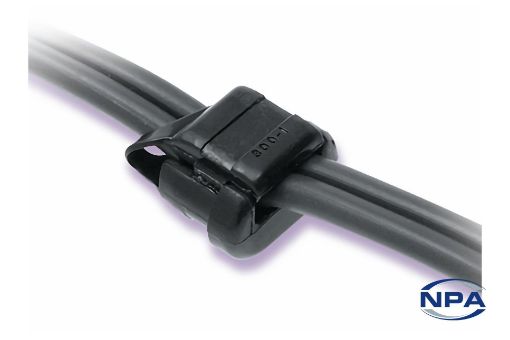

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Product Code: 1804

Manufacturer: Heyco

UOM: EACH

Strain relief bushings for flat cables. Fits 300 OHM cables measuring AWG 20/2 (1.5mm x 10.2mm), 22/2 (1.5mm x 10.2mm). Also fits SPT-1 cables measuring AWG 18/2 (3mm x 7.6mm) and 18/3 (3mm x 7.6mm). SPT-2 cables measuring 18/2 or 18/3 (3.8mm x 10.2mm) and 16/2 or 16/3 (4.1mm x 10.4mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Flat Cables
Colour	Black
Material	Nylon 66
Length	11.9mm
Mounting Hole Diameter	9.5mm - 11.mm
Panel Thickness	4mm
Cable Size AWG	22 - 16
Cable Size Minimum	1.5mm x 10.2mm
Cable Size Maximum	4.1mm x 10.4mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
