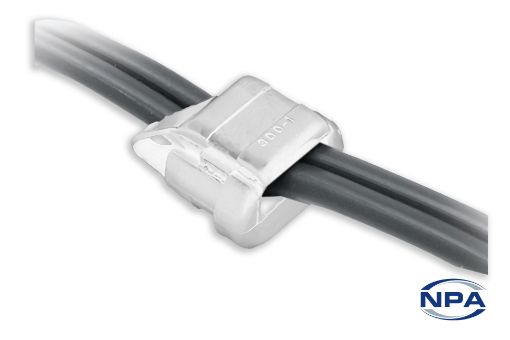

Strain Relief Bushing Straight-Thru - For Flat Cables White

Product Code: 1115
Manufacturer: Heyco
UOM: EACH
Bushings to anchor flat cables through holes while absorbing push, pull and other strains. Fit PT-1 Cables measuring AWG 18/3 (3mm x 7.6mm, SPT-2 HPN cables 18/2 (3.8mm, x 7.1mm), HPN cables 18/3 (3.8 x 8.6mm) & SPT-2 HPN cables 16/2 (4.1m x 7.6mm). To plug an unneeded hole afterwards refer to product 2491.
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Flat Cables
ColourWhite
MaterialNylon 66
Length12.7mm
Mounting Hole Diameter12.7mm - 13.1mm
Panel Thickness2.4mm
Cable Size AWG18 - 16
Cable Size Minimum3.8mm x 7.1mm
Cable Size Maximum4.1mm x 8.6mm
Flammability Rating94V-2
