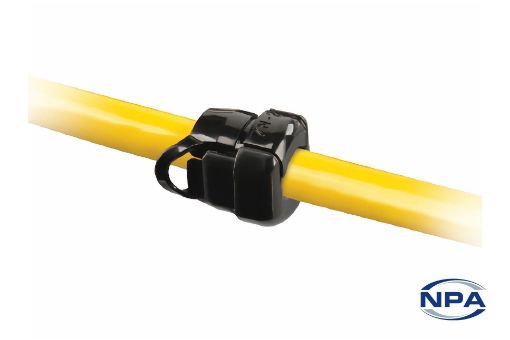

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1200

Manufacturer: Heyco

UOM: EACH

Strain relief bushings for round SJ, SJT & SJO cables measuring AWG 16/2 (8.3mm), AWG 18/3 (8.4mm), AWG 14/2 (8.9mm), AWG 16/3 (9mm) or AWG 18/4 (9.1mm) diameter.

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Round Cables
Colour	Black
Material	Nylon 66
Length	14.7mm
Mounting Hole Diameter	15.9mm
Panel Thickness	1.6mm
Cable Size AWG	18 - 14
Cable Size Minimum	8.3mm
Cable Size Maximum	9.1mm
Flammability Rating	94V-2
Other information	Round Cable

Customers who bought this item also bought

Hole Plug Dome Black

Product Code: 2613

UOM: EACH

Height: 7.9mm

Diameter: 9.5mm

Mounting Hole Diameter: 7.9mm

Panel Thickness: 1.6mm

7.9mm reusable dome shaped plug. Fits panels up to 1.6mm thick.

to purchase this item

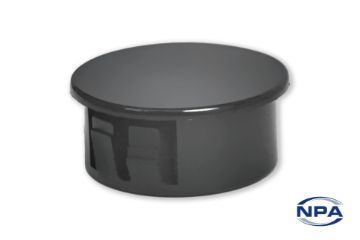

Hole Plug Glossy Black

Product Code: 2590

UOM: EACH

Height: 5.9mm

Diameter: 6.4mm

Mounting Hole Diameter: 4.7mm

Panel Thickness: 1.6mm

4.7mm flat headed hole plug with a glossy finish. Fits panels up to 1.6mm thick.

to purchase this item

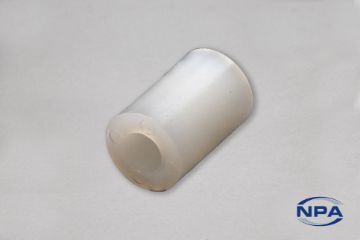

Spacer Clear Hole Natural
