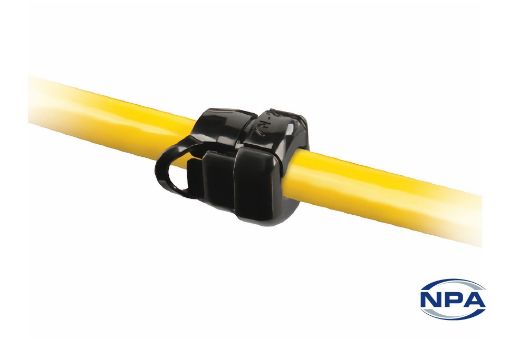

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1250

Manufacturer: Heyco

UOM: EACH

Strain relief bushings for round cables. Fits SJT cables measuring AWG 14/3 (9.4mm), 12/3 (10.8mm). Also fits S, SO & ST cables measuring AWG 18/2 (9.9mm), 18/3 (10.3mm), 16/2 (10.3mm) and 16/3 (10.9mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Round Cables
Colour	Black
Material	Nylon 66
Length	19.1mm
Mounting Hole Diameter	22.2mm
Panel Thickness	5.1mm
Cable Size AWG	18 - -12
Cable Size Minimum	9.4mm
Cable Size Maximum	10.9mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Round Cable
