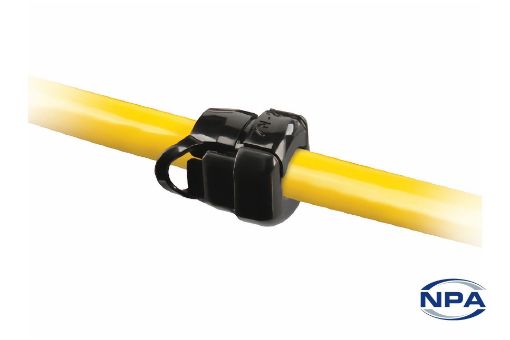

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1271

Manufacturer: Heyco

UOM: EACH

Bushings to relieve strain in round cables. Fits SJ, SJT & SJO cables measuring AWG 16/2 (8.3mm), 18/3 (8.4mm), 14/2 (8.9mm), 16/3 (9mm) or 18/4 (9.1mm). To close an unneeded hole at a later time refer to product 2509.

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Round Cables
Colour	Black
Material	Nylon 66
Length	19.1mm
Mounting Hole Diameter	22.2mm
Panel Thickness	3.2mm
Cable Size AWG	18 - 14
Cable Size Minimum	8.3mm
Cable Size Maximum	9.1mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Round Cable
