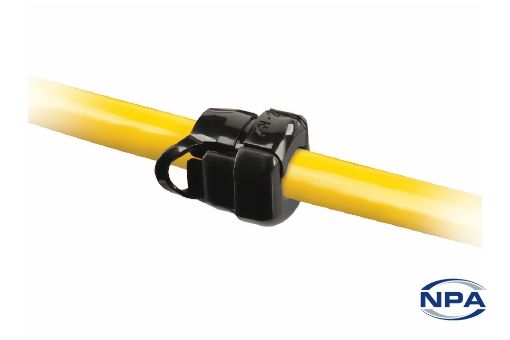

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1287

Manufacturer: Heyco

UOM: EACH

Black strain relief bushings for round cables. Fit S cables measuring AWG 12/2 (15.2mm), 12/3 (16.1mm), 10/2 (16.3mm). Also fit S, SO & ST cables measuring AWG 10/3 (17.5mm) and SRDT cables measuring 10/4 (17.5mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Round Cables
Colour	Black
Material	Nylon 66
Length	25.4mm
Mounting Hole Diameter	27.7mm - 30.2mm
Panel Thickness	7.1mm
Cable Size AWG	12 - 10
Cable Size Minimum	15.2mm
Cable Size Maximum	17.5mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
