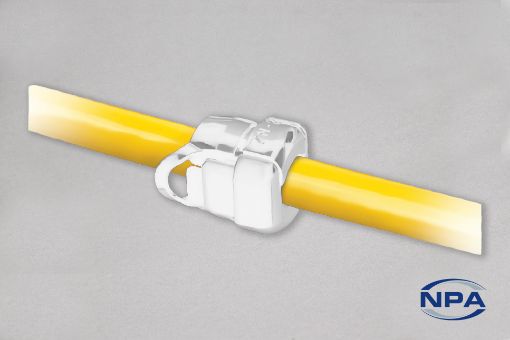

Strain Relief Bushing Straight-Thru - For Round Cables White

Product Code: 1261
Manufacturer: Heyco
UOM: EACH
White bushings to protect the lifeline of wires by absorbing push, pull and twisting forces. Fit round S & ST cables measuring AWG 14/2 (13.5mm), 14/3 (14.2mm) or 12/2 (15.3mm).
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru - For Round Cables
ColourWhite
MaterialNylon 66
Length20.6mm
Mounting Hole Diameter22.2mm
Panel Thickness3.2mm
Cable Size AWG14 - 12
Cable Size Minimum13.5mm
Cable Size Maximum15.3mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
Other informationRound Cable
