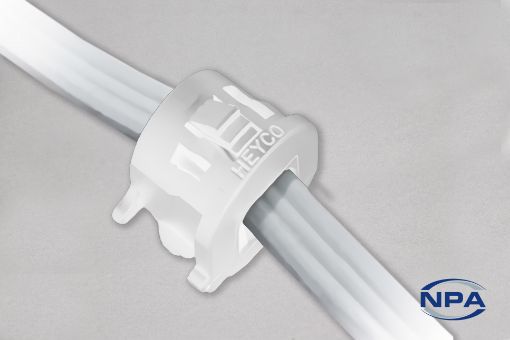

Picture of Strain Relief Bushing Straight-Thru Lock-It - For Flat Cables Black

Strain Relief Bushing Straight-Thru Lock-It - For Flat Cables Black

Product Code: 1875
Manufacturer: Heyco
UOM: EACH
Strain relief bushings that easily snap onto flat cables to pass through Heyco Double D holes. Fit SPT-2 HPN cables measuring AWG 18/2 (2.9mm x 8mm), 18/3 (4.1mm x7.6mm) and 16/3 (4.1mm x 7.6mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru Lock-It - For Flat Cables
ColourBlack
MaterialNylon 66
Mounting Hole Diameter15.9mm
Panel Thickness0.8 - 2.5mm
Cable Size AWG18 - 16
Cable Size Minimum2.9mm x 8mm
Cable Size Maximum4.1mm x 7.6mm
Flammability Rating94V-2
CertificationsUL, CSA
Other informationFlat Cable
