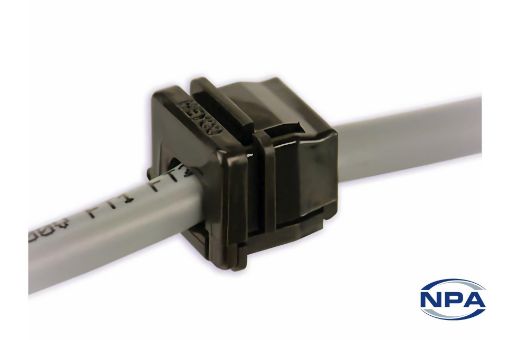

Picture of Strain Relief Bushing Straight-Thru U-Shaped Black

Strain Relief Bushing Straight-Thru U-Shaped Black

Product Code: 1839
Manufacturer: Heyco
UOM: EACH
Strain relief bushings designed for split panels with a U-shaped slot. Fit SV & SVT cables measuring AWG 18/2 (5.6mm), 18/3 (6.4mm or 6.5mm). Also fit HPD cables measuring AWG 18/2 (6.9mm) or 16/2 (7.4mm).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionStrain Relief Bushing
TypeStraight-Thru U-Shaped
ColourBlack
MaterialNylon 66
Mounting Hole Diameter11.5mm x 13mm
Panel Thickness1.6mm
Cable Size AWG18 - 16
Cable Size Minimum5.6mm
Cable Size Maximum7.4mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationRound and Flat Cable
