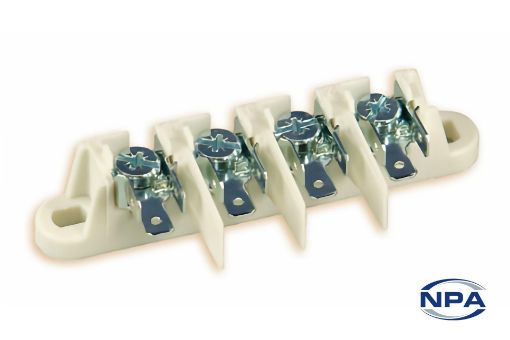

Picture of Terminal Block Screw to Tab White

Terminal Block Screw to Tab White

Product Code: 9452
Manufacturer: Heyco
UOM: EACH
Flame resistant terminal blocks with 4 poles. Rated 450V 40A (AEC) or 600V 40A (American). Fit AWG 18-8 (10mm²) wires.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTerminal Block
TypeScrew to Tab
ColourWhite
MaterialNylon and Galvanised Steel
Length99mm
Width15mm
Height25.4mm
Screw SizeM5
Number of Poles4
Voltage Rating600V
Current Rating40A
Cable Size mm10mm²
Cable Size AWG18 - 8
Minimum Temperature-18°C
Maximum Temperature150°C
Flammability Rating94V-0
CertificationsUL
