    Picture of Terminal Block Standard Natural

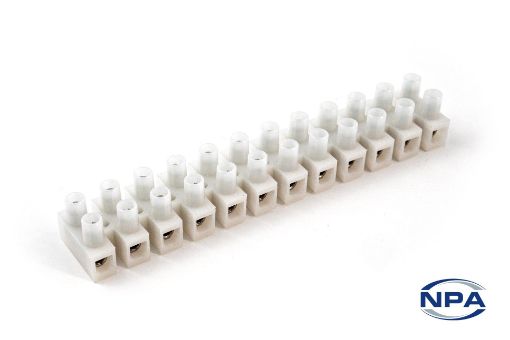

    Terminal Block Standard Natural

    Product Code: 31613
    Manufacturer: NPA
    UOM: EACH
    Standard terminal block. Base raised to 1.2mm. 12 screw poles for connecting wires. Rated for 450V and 20A. Features wire protecting flaps. Stripping Length : 5.3m.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionTerminal Block
    TypeStandard
    ColourNatural
    MaterialNylon 66
    Length117.5mm
    Width20.2mm
    Height17mm
    Mounting Hole Diameter3.6mm
    Internal Hole Diameter3.4mm
    Thread PitchM3 x 6mm
    Spacing10mm
    Number of Poles12
    Voltage Rating450V
    Current Rating20A
    Wire ProtectionYes
    Cable Size AWG22 - 10 (Sol Cu), 22 - 12 (Str Cu)
    Cable Size Minimum1mm²
    Cable Size Maximum2.5mm²
    CertificationsUL
    Other informationRaised Base 1.2mm
