Picture of Terminal Block Standard Natural

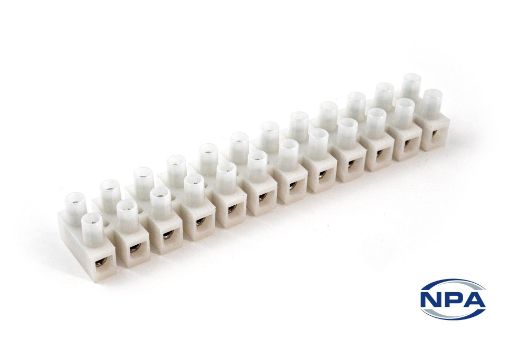

Terminal Block Standard Natural

Product Code: 31620
Manufacturer: NPA
UOM: EACH
Standard terminal block. Base raised to 1.2mm. 12 screw poles for connecting wires. Rated for 450V and 20A. Stripping Length : 5.3m.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTerminal Block
TypeStandard
ColourNatural
MaterialNylon 66
Length116.8mm
Width20.2mm
Height16.7mm
Mounting Hole Diameter3.6mm
Internal Hole Diameter3.2mm
Thread PitchM3 x 6mm
Spacing10mm
Number of Poles12
Voltage Rating450V
Current Rating20A
Wire ProtectionNo
Cable Size mm4mm²
Cable Size AWG22 - 12
CertificationsUL
Other informationRaised Base Height 1.0mm
