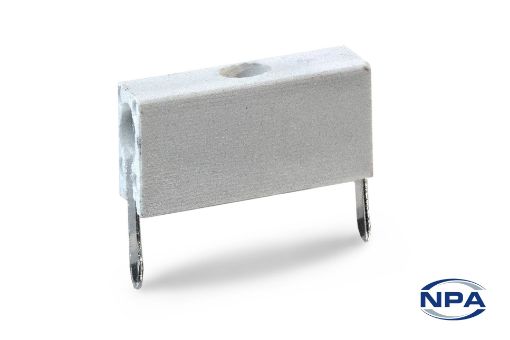

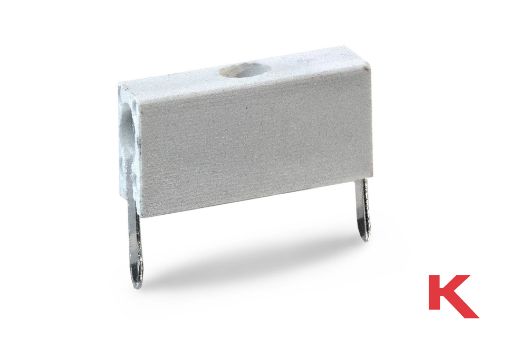

Picture of Test Jack Miniature White

Test Jack Miniature White

Product Code: K6048
Manufacturer: Keystone
UOM: EACH
Half the size of standard jacks. Fit .080" (2.03mm) tips in either end. Mount on .200" (5.08mm), centers in .052" (1.32mm) holes. Can be spaced side by side on .160" (4.06mm) centers minimum. Current: 5 Amps. Breakdown voltage: 2100 VRMS. Capacitance 1.0 pF maximum.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTest Jack
TypeMiniature
ColourWhite
MaterialNylon Body With Silver Plated Beryllium Copper Contact
Length5.28mm
Width3.96mm
Height5.16mm
Mounting Hole Diameter2.03mm
ProfileHorizontal
Tab Size1.22 x 3.38mm
Mounting TypeThru-Hole Mount (THM)
