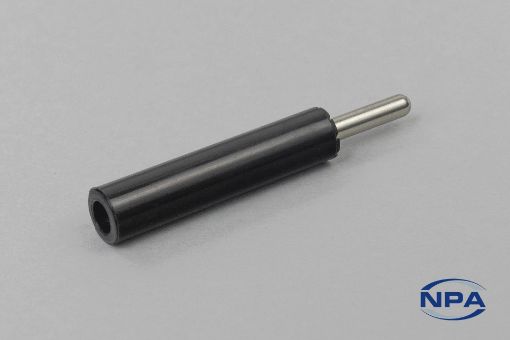

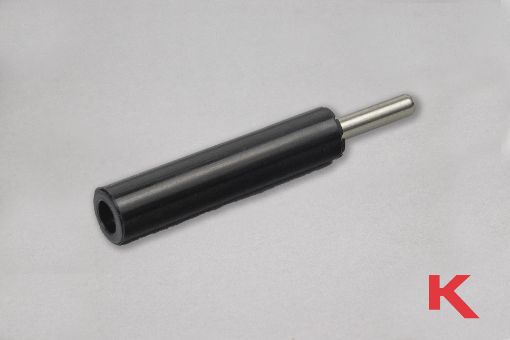

Picture of Test Jack PC Mount Black

Test Jack PC Mount Black

Product Code: K6038
Manufacturer: Keystone
UOM: EACH
Low profile test jacks that mount into a .052" diameter hole. Capacitance between two adjacent jacks less than 1.0 pF at 1 MHz. Operating voltage is 1500 Volts RMS. Current rating 5 Amps max.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTest Jack
TypePC Mount
ColourBlack
MaterialNylon 66 Insulator With Silver Plated Brass Tip
Length7.92mm
Diameter4.75mm
ProfileVertical
Voltage Rating1500 RMS
Current Rating5A
Tab Size1.22mm x 3.18mm
Mounting TypeThru-Hole Mount (THM)
