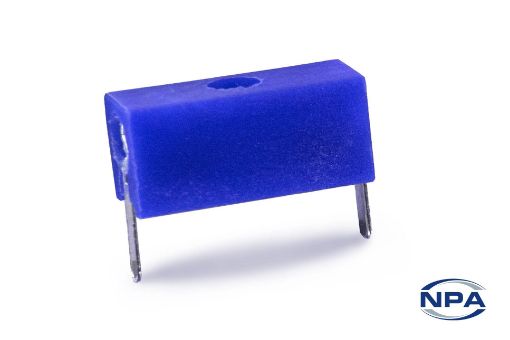

    Picture of Test Jack Universal Blue

    Test Jack Universal Blue

    Product Code: K6059
    Manufacturer: Keystone
    UOM: EACH
    This universal design accepts .080" (2.03mm) tip plug in either end, or from top or bottom. Top contact will also accept hook-type oscilloscope probe. Current rating: 5 Amps. Breakdown woltage: 2100 VRM. Capacitance 1.0 pF maximum. Mounts on .400" (10.16mm) centers in .052" (1.32mm) holes. Side by side mounting on .160" (4.06mm) centers.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionTest Jack
    TypeUniversal
    ColourBlue
    MaterialNylon Body With Silver Plated Beryllium Copper Contact
    Length10.41mm
    Width3.96mm
    Height5.16mm
    Mounting Hole Diameter2.03mm
    ProfileHorizontal
    Tab Size1.22 x 3.38mm
    Mounting TypeThru-Hole Mount (THM)
