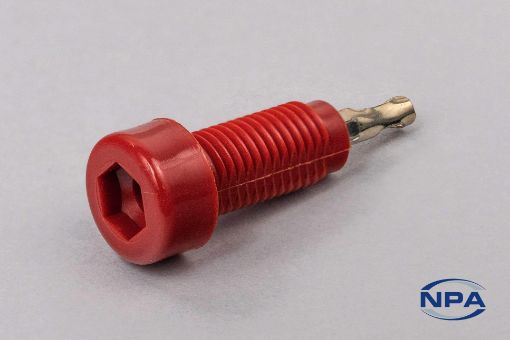

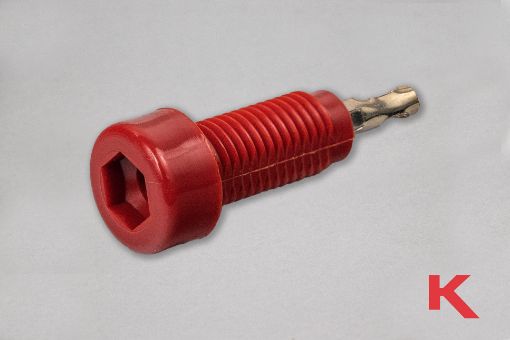

    Picture of Test Tip Jack Insulated Red

    Test Tip Jack Insulated Red

    Product Code: K6019
    Manufacturer: Keystone
    UOM: EACH
    Current rating: 10 Amps. Breakdown voltage 5700 VRMS. Contact resistance: 0.004 OHMS maximum. Capacitance to metal panel 2pF. nominal. Supplied with nut and washer unassembled.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionTest Tip Jack
    TypeInsulated
    ColourRed
    MaterialNylon 66 Insulator With Tin Plated Phosphor Bronze Contact
    Length21.44mm
    Width9.52mm
    Diameter9.53mm
    Mounting Hole Diameter2.03mm
    Thread Length14.27mm
    Thread Pitch.250-32
    Voltage Rating5700V
    Current Rating10A
