Picture of Test Tip Jack Insulated White

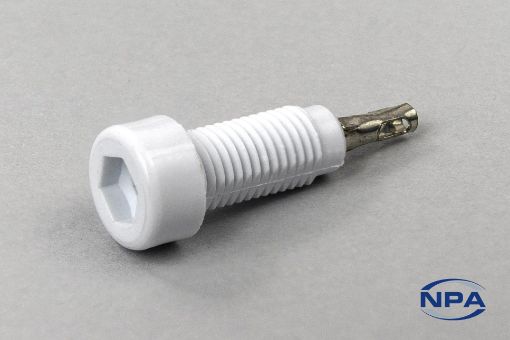

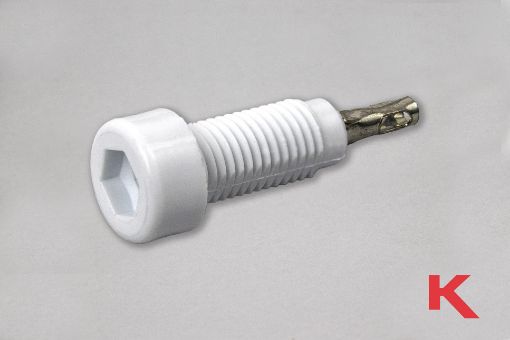

Test Tip Jack Insulated White

Product Code: K6018
Manufacturer: Keystone
UOM: EACH
Current rating: 10 Amps. Breakdown voltage 5700 VRMS. Contact resistance: 0.004 OHMS maximum. Capacitance to metal panel 2pF. nominal. Supplied with nut and washer unassembled.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTest Tip Jack
TypeInsulated
ColourWhite
MaterialNylon 66 Insulator With Tin Plated Phosphor Bronze Contact
Length21.44mm
Width9.52mm
Diameter9.53mm
Mounting Hole Diameter2.03mm
Thread Length14.27mm
Thread Pitch.250-32
Voltage Rating5700V
Current Rating10A
