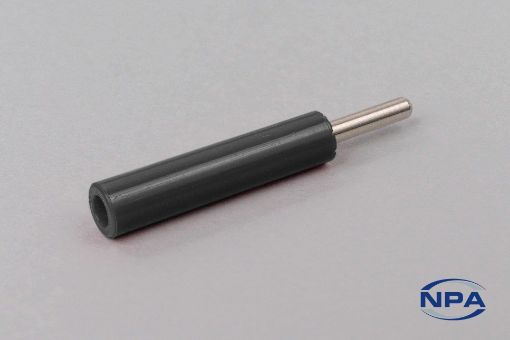

Picture of Test Tip Jack Metal-Clad Closed Entry Contact Black

Test Tip Jack Metal-Clad Closed Entry Contact Black

Product Code: K6014
Manufacturer: Keystone
UOM: EACH
Current rating: 10 Amps. Breakdown voltage 5700 VRMS. Contact resistance: 0.004 OHMS maximum. Capacitance to metal panel 2pF. nominal. Supplied with nut and washer unassembled.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTest Tip Jack
TypeMetal-Clad Closed Entry Contact
ColourBlack
MaterialMoulded Nylon Body, Nickel Plated Brass Shell & Nut, Gold Plated Beryllium Copper Contact
Length20.6mm
Width7.9mm
Mounting Hole Diameter2.03mm
Thread Length10.1mm
Thread Pitch.250-32
Voltage Rating5700V
Current Rating10A
