Picture of USB 2.0 Type A Socket Dual Stacking

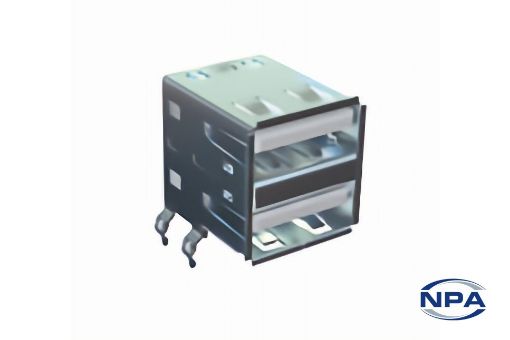

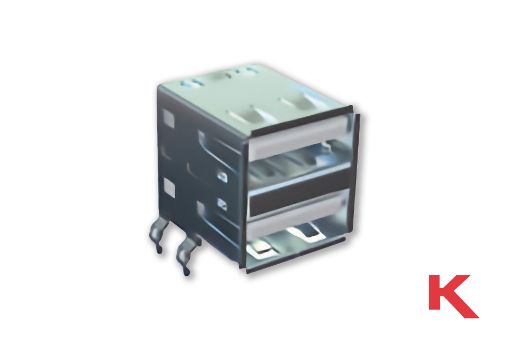

USB 2.0 Type A Socket Dual Stacking

Product Code: K922
Manufacturer: Keystone
UOM: EACH
Two USB A 2.0 sockets stacked on top of each other. Thru-Hole solder type mounting. Snap-In PC solder tails hold connector in position for wave soldering.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionUSB 2.0 Type A Socket
TypeDual Stacking
MaterialNickel Plated Shell, Thermoplastic Insulator, Copper Alloy Contacts, Gold Flash over Nickel Contact Area, Tin over Nickel Solder Trails
Length17mm
Width14.5mm
Height15.4mm
ProfileHorizontal
Voltage Rating30V
Current Rating1A
Mounting TypeThru-Hole Mount (THM)
Minimum Temperature-25°C
Maximum Temperature80°C
Flammability Rating94V-0
CertificationsUL
