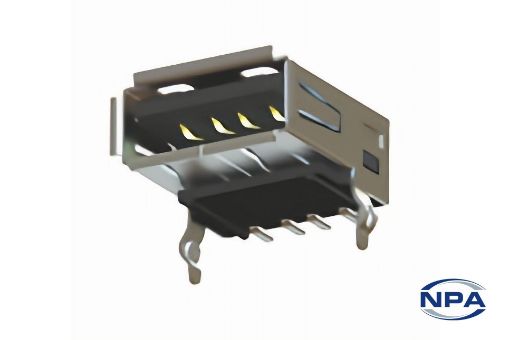

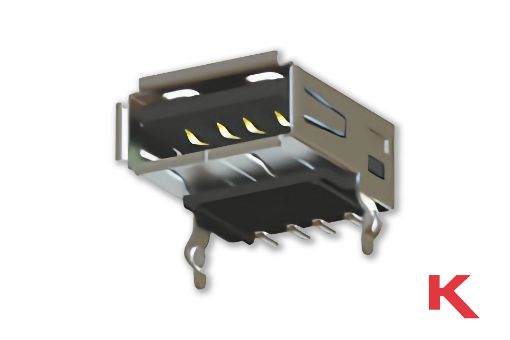

Picture of USB 2.0 Type A Socket Surface Mount

USB 2.0 Type A Socket Surface Mount

Product Code: K920
Manufacturer: Keystone
UOM: EACH
Snap-In PC solder tails hold the connector in position for wave soldering.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionUSB 2.0 Type A Socket
TypeSurface Mount
MaterialNickel Plated Shell, Thermoplastic Insulator, Copper Alloy Contacts, Gold Flash over Nickel Contact Area, Tin over Nickel Solder Trails
Length14mm
Width14.5mm
Height6.9mm
ProfileHorizontal
Voltage Rating30V
Current Rating1A
Mounting TypeSurface Mount (SMT)
Minimum Temperature-25°C
Maximum Temperature80°C
Flammability Rating94V-0
CertificationsUL
