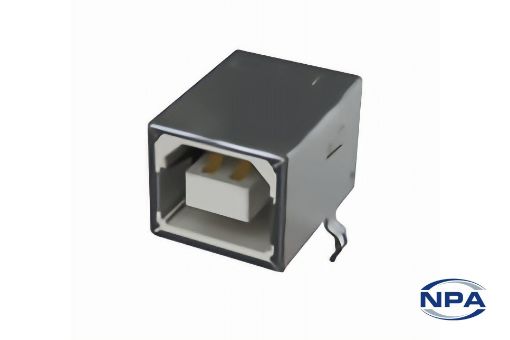

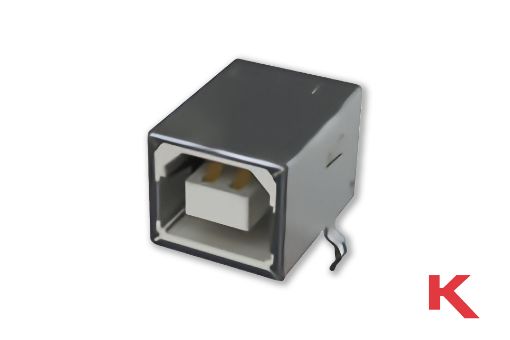

Picture of USB 2.0 Type B Socket Thru-Hole Mount

USB 2.0 Type B Socket Thru-Hole Mount

Product Code: K924
Manufacturer: Keystone
UOM: EACH
USB B 2.0 sockets with snap-In PC solder tails hold connector in position for wave soldering.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionUSB 2.0 Type B Socket
TypeThru-Hole Mount
MaterialNickel Plated Steel Shell, Thermoplastic Insulator, Gold Flash Over Nickel Bronze Contact
Length16mm
Width12mm
Height10.6mm
Minimum Temperature-25°C
Maximum Temperature80°C
Flammability Rating94V-0
CertificationsUL
