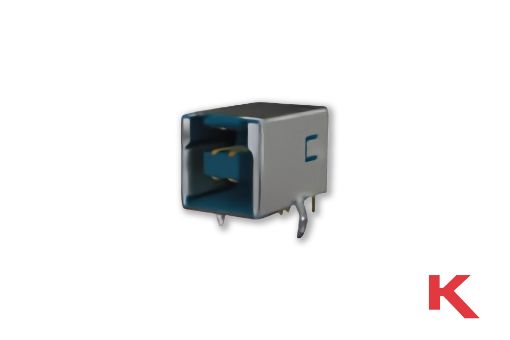

Picture of USB 3.0 Type B Socket Thru-Hole Mount

USB 3.0 Type B Socket Thru-Hole Mount

Product Code: K950
Manufacturer: Keystone
UOM: EACH
USB Type B Socket. USB 3.0 Standard Right Angle. Snap-In PC solder tails hold connector in position for wave soldering.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionUSB 3.0 Type B Socket
TypeThru-Hole Mount
MaterialNickel Plated Phosphor Bronze Shell, Thermoplastic Insulator, Gold Flash Over Nickel Phosphor Bronze Contacts, Gold Flash Over Nickel Contact Area, Tin Over Nickel Solder Tails
Length18.4mm
Width12mm
Height12.9mm
Voltage Rating30V
Current Rating1A
Mounting TypeThru-Hole Mount (THM)
Minimum Temperature-25°C
Maximum Temperature80°C
Flammability Rating94V-0
CertificationsUL
