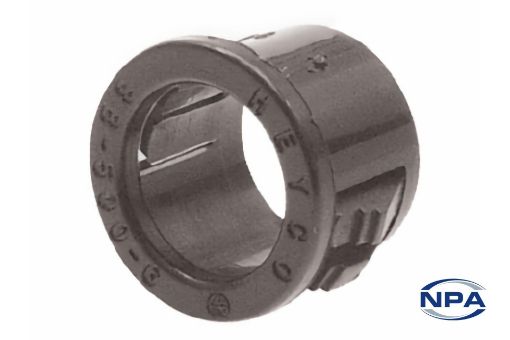

Picture of Bushing Snap Black

Bushing Snap Black

Product Code: 2066
Manufacturer: Heyco
UOM: EACH
Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force of 35 lbs. (16kg).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionBushing
TypeSnap
ColourBlack
MaterialNylon 66
Height10.3mm
Diameter16.7mm
Mounting Hole Diameter14.3mm
Internal Hole Diameter11.1mm
Panel Thickness3.2mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
