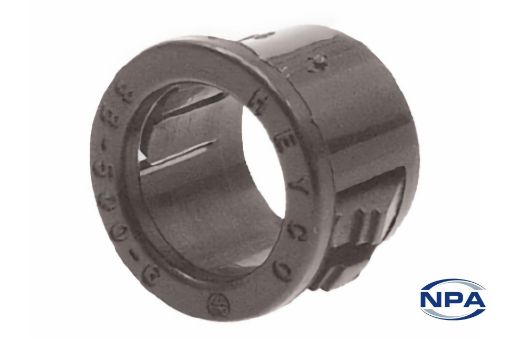

Bushing Snap Black

Product Code: 2103

Manufacturer: Heyco

UOM: EACH

Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force of 35 lbs. (16kg).

Download Datasheet

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	10.3mm
Diameter	22.6mm
Mounting Hole Diameter	20.6mm
Internal Hole Diameter	15.9mm
Panel Thickness	3.2mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
