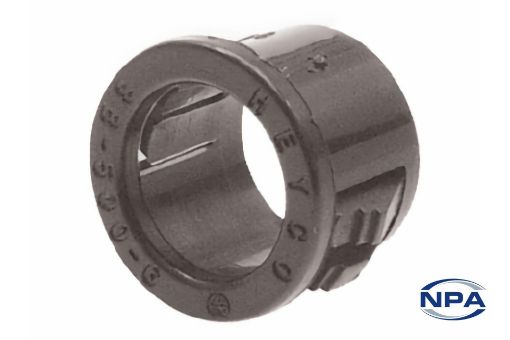

Bushing Snap Black

Product Code: 2198

Manufacturer: Heyco

UOM: EACH

Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).

Download Datasheet

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	11.5mm
Diameter	34.5mm
Mounting Hole Diameter	31.8mm
Internal Hole Diameter	23.8mm
Panel Thickness	3.2mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
