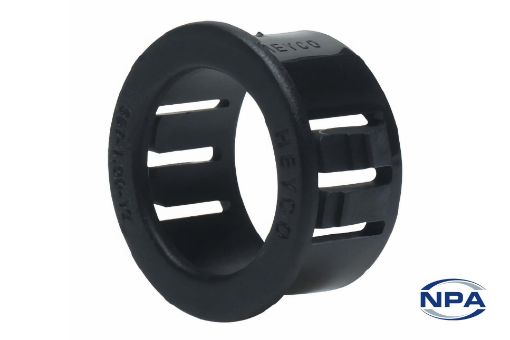

Bushing Snap Black

Product Code: 2840

Manufacturer: Heyco

UOM: EACH

Snap-in bushings for thicker panels. Withstand push back forces up to 32lbs. (16kg).

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	13.5mm
Diameter	21mm
Mounting Hole Diameter	19.1mm
Internal Hole Diameter	15.9mm
Panel Thickness	6.4mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA

Customers who bought this item also bought

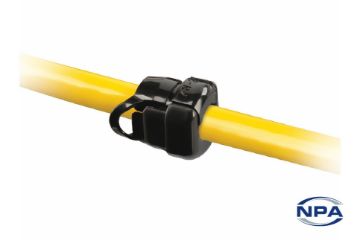

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1217

UOM: EACH

Length: 14.7mm

Mounting Hole Diameter: 15.9mm

Panel Thickness: 1.6mm

Round cable bushings to reduce strain through holes. Fit SJ, SJT & SJO cables measuring AWG 18/2 (7.6mm). To fill an unneeded hole later refer to product 2497.

to purchase this item

Strain Relief Bushing Straight-Thru - For Round Cables Black

Product Code: 1210

UOM: EACH

Length: 14.7mm

Mounting Hole Diameter: 15.9mm

Panel Thickness: 3.2mm

Round cable bushings to reduce strain through holes. Fit SJ, SJT & SJO cables measuring AWG 18/2 (7.6mm). To fill an unneeded hole later refer to product 2497.

to purchase this item

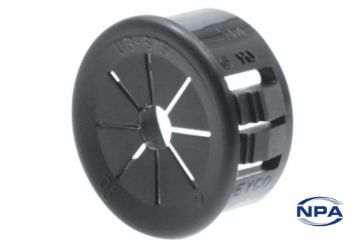

Bushing Universal Black

Product Code: 2119

UOM: EACH

Height: 11.5mm

Diameter: 23.8mm

Mounting Hole Diameter: 22.2mm

Internal Hole Diameter: 14.3mm

Panel Thickness: 3.2mm

Universal bushings feature flexible shutters adjust to accommodate and support any shape. Absorb vibration; cushion and insulate cables, tubing, hoses or shafts.

to purchase this item

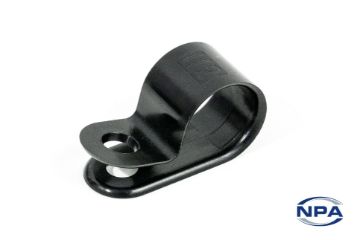

"P" Clip Heavy Duty Black
